JY213H 600V Three-Phase Gate Driver IC | High-Speed MOSFET & IGBT Driver for 3 phase bldc motor controller

Name: JY213H 600V ThreePhase Gate Driver IC HighSpeed MOSFET amp IGBT Driver for 3 phase bldc motor controller
Brand: JUYI
Price: 1 USD

China JY213H 600V Three-Phase Gate Driver IC | High-Speed MOSFET & IGBT Driver for 3 phase bldc motor controller wholesale

Brand Name : JUYI

Model Number : JY213H

Certification : iso

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C,T/T,Palpal

Supply Ability : 10000pcs/day

Delivery Time : 5-8 days

Packaging Details : PE bag+ carton

Model : JY213H

High-side supply voltage : –0.3 to 600 V

Low-side supply voltage (Vcc) : -0.3 to 20V

Dead time : 0.1μs

High-side driver source/sink current : 160 / 340 A

Low-side driver source/sink current : 160 / 340 A

Junction temperature : -40 to 125°C

Contact Now

JY213H 600V Three-Phase Gate Driver IC | High-Speed MOSFET & IGBT Driver

Overview

The JY213H is a high-speed power MOSFET and IGBT driver featuring three independent high-side and low-side output channels for three-phase gate driving applications. The chip integrates built-in dead time and shoot-through protection, effectively preventing damage to the half-bridge circuit. To avoid damage to the power devices caused by low supply voltage operation, an internal undervoltage lockout (UVLO) circuit is included.

With advanced high-voltage BCD process technology and built-in common-mode noise cancellation, the high-side driver can operate stably even in high dv/dt noise environments.

Key Features

Integrated 600V three-phase half-bridge high-side and low-side drivers
Built-in dead time
Integrated shoot-through protection
Undervoltage lockout (UVLO) for both high-side and low-side drivers
Compatible with 3.3V, 5V, and 15V logic levels
Dead time: 0.1 μs (typ.)
Excellent dv/dt common-mode noise immunity
Capable of withstanding negative transient voltages
Operating temperature range: -40°C to 125°C

Applications

Brushless DC motor (BLDC) drive systems
Other three-phase inverter applications

Typical Application Circuit

JY213H 600V Three-Phase Gate Driver IC | High-Speed MOSFET & IGBT Driver for 3 phase bldc motor controller

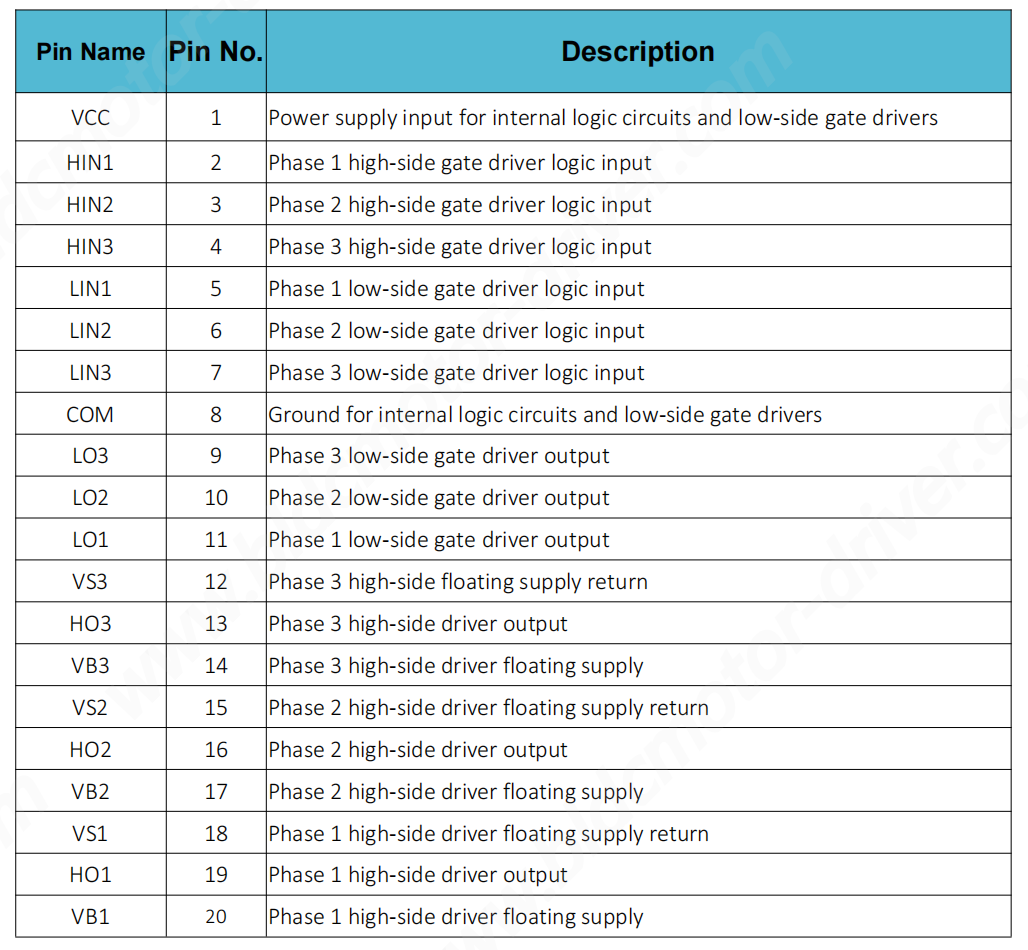

Package & Pin Descriptions (SOP-20)

Absolute Maximum Ratings
